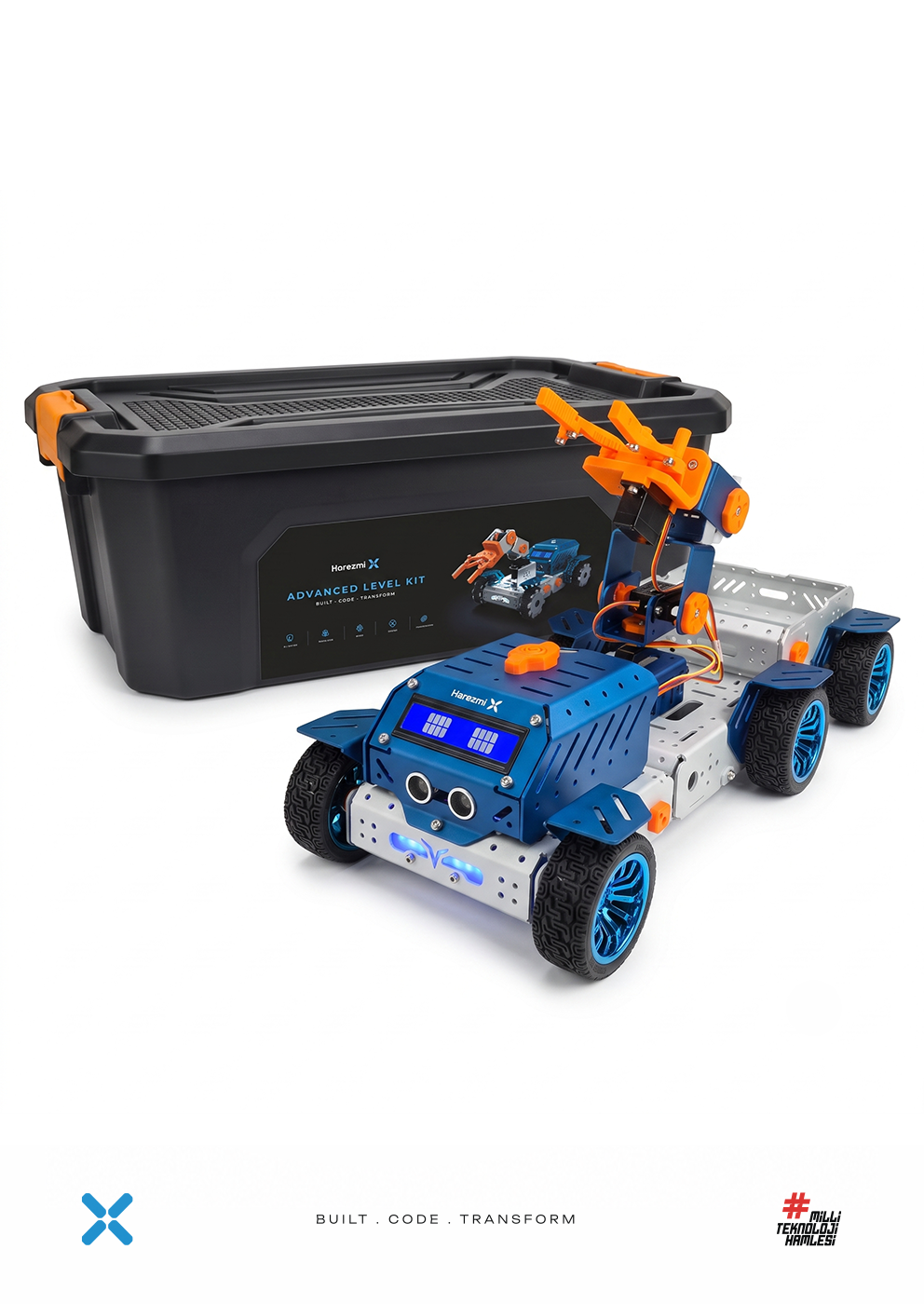

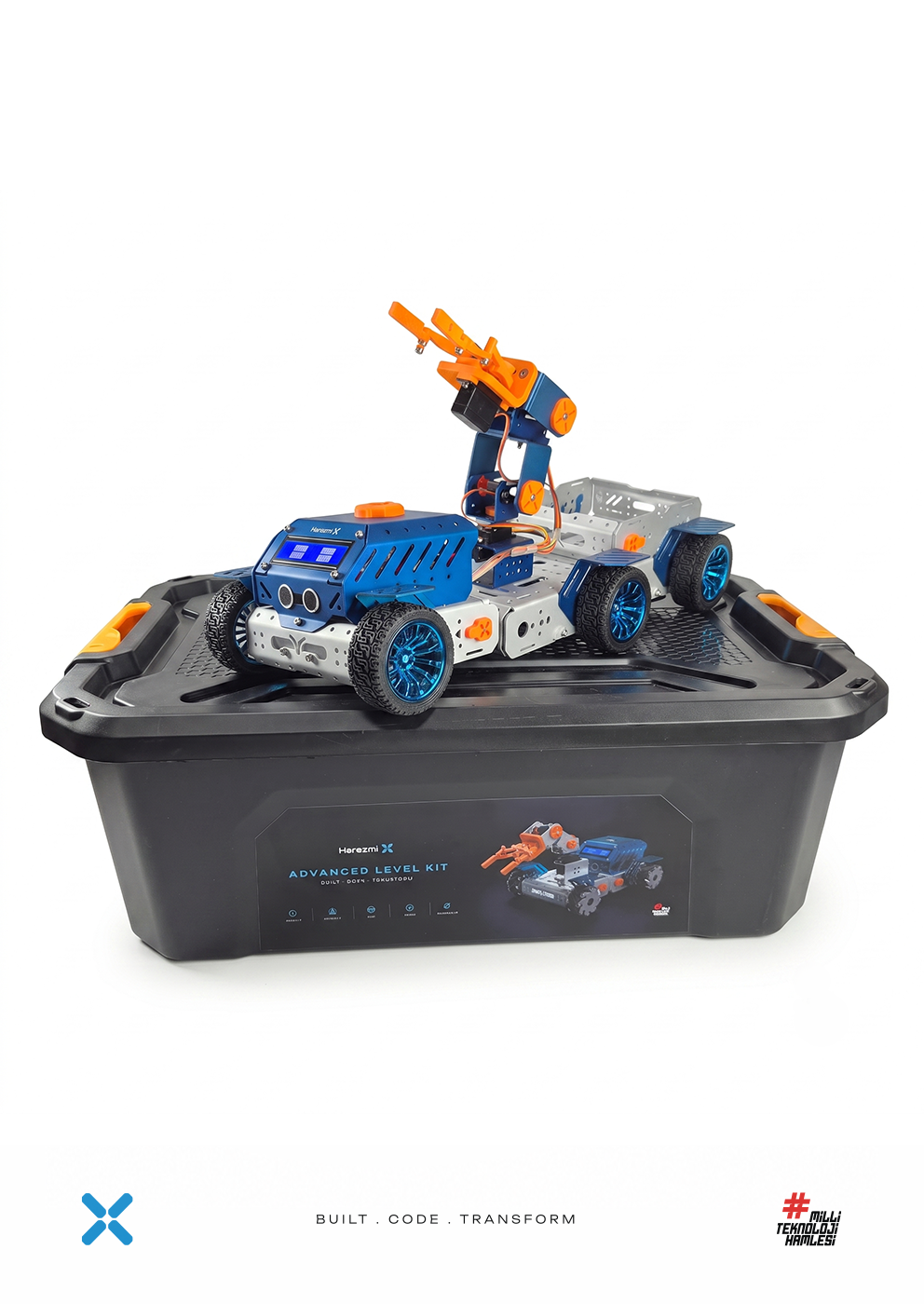

Features and Hardware
- Target Audience: High School (+ Elementary and Middle School)
- Assembly Status: Disassembled (650 Pieces?)
- Number of Robot Forms: Min. 16 Forms (8 Explorer Forms + 8 New Complex Forms)

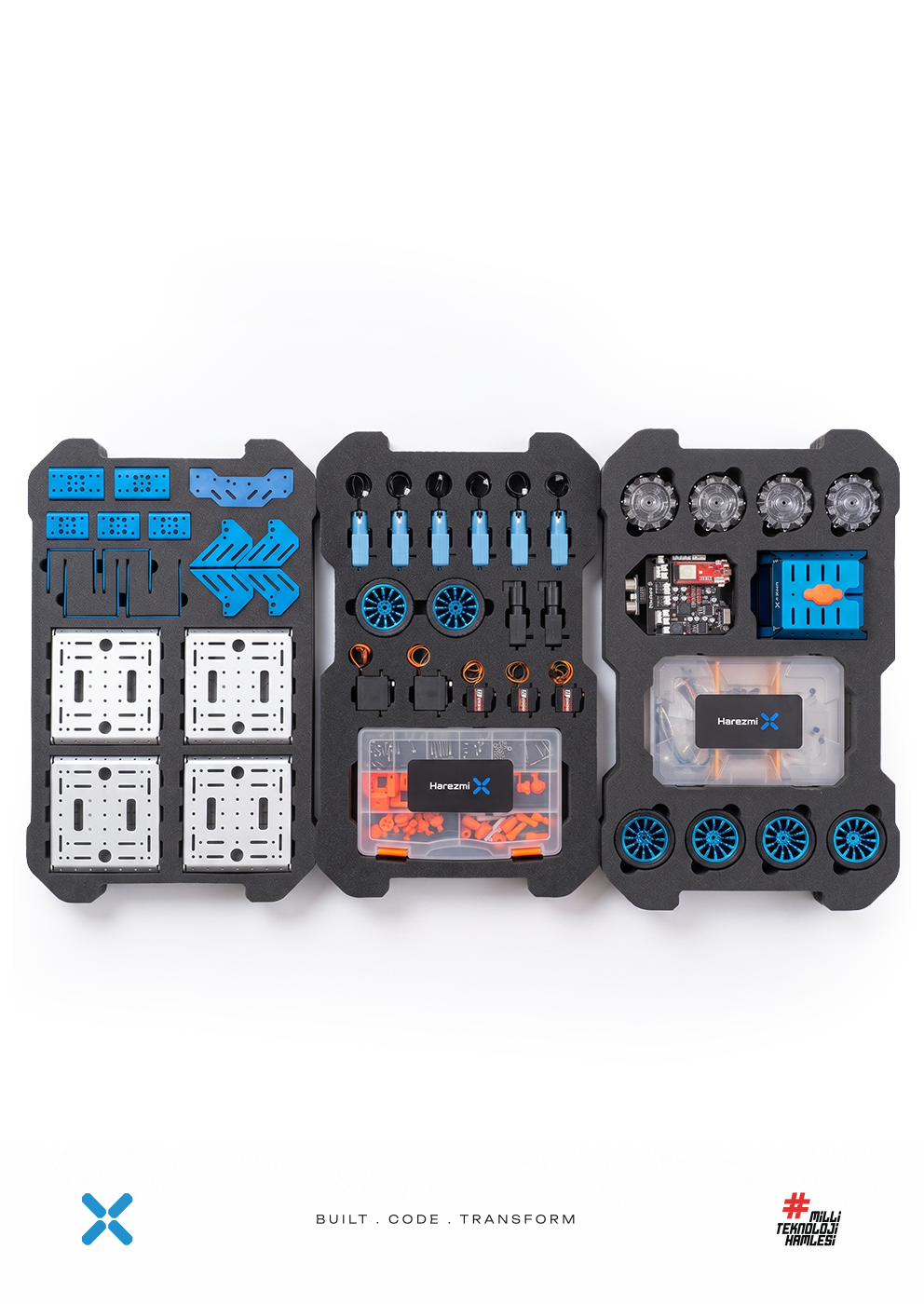

- Chassis and Mechanics: 4 Main Chassis Components, 1 Vehicle Body, Special Aluminum Parts for Robotic Arms and Extra Projects
- Mobility: 6 DC Motors, 6 Wheels, 4 Mecanum Wheels
- Battery: 7.4V 2800 mAh Li-Ion Battery
- Physical Specifications:
- Box Dimensions (L x W x H): … cm x … cm x … cm
- Assembled Robot Dimensions (L x W x H): … cm x … cm x … cm
- Box Weight (Gross): … g
- Material: Anodized aluminum profile body and industrial plastic components

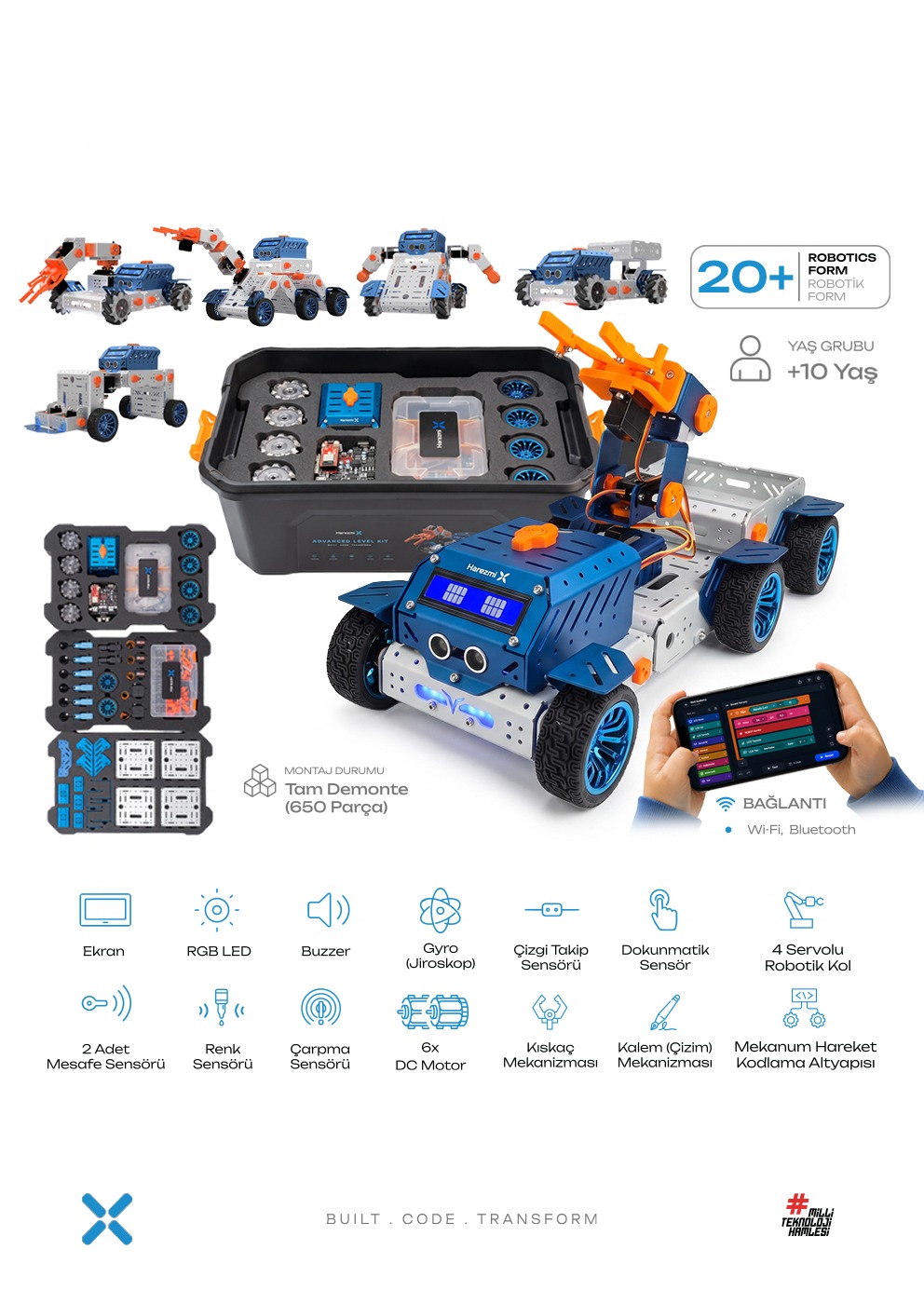

Programmable Modules and Mechanisms (Included in the Box)
- Complete Sensor Set: Color Sensor, Collision Sensor, Distance Sensor (2 Units), Line-Following Sensor, Display, RGB LED, Buzzer, Gyro, Touch Sensor, Wi-Fi, Bluetooth
- Task Mechanisms: Gripper Mechanism, Drawing Mechanism
- Servo Motors: 2 Small, 2 Large Servo Motors
(Note: Hardware such as the drawing mechanism, clamp, color, and impact sensors are sold separately.)

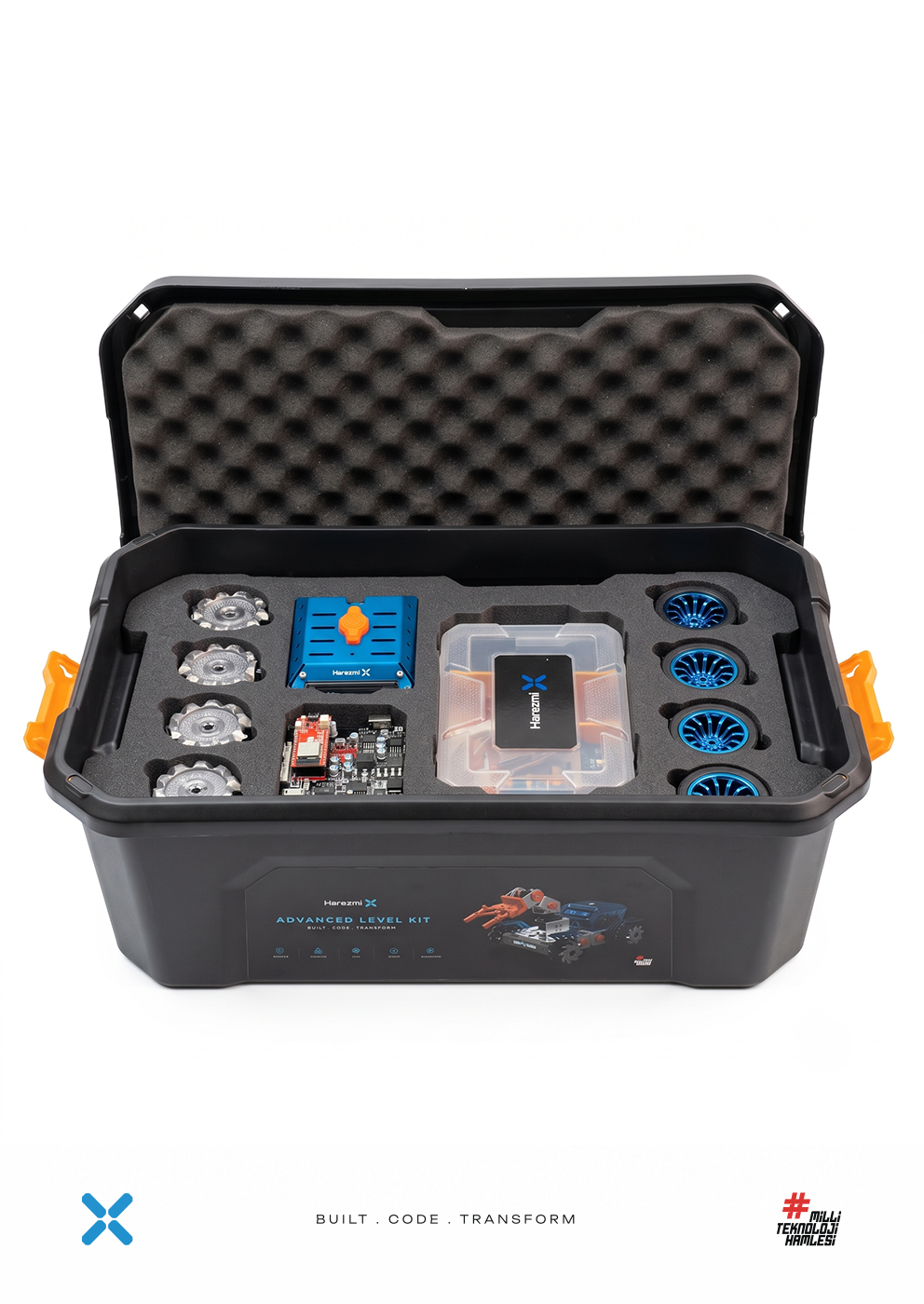

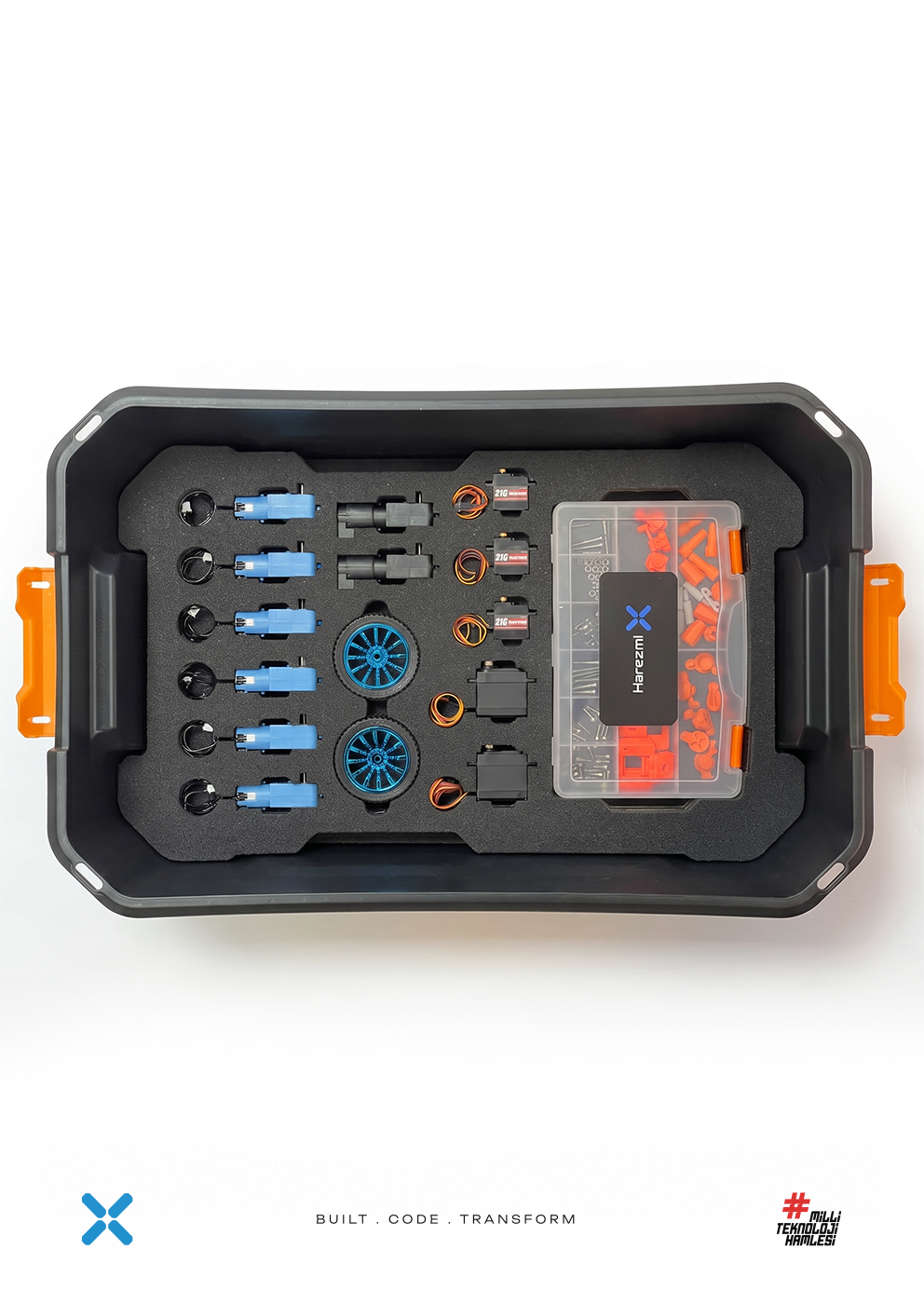

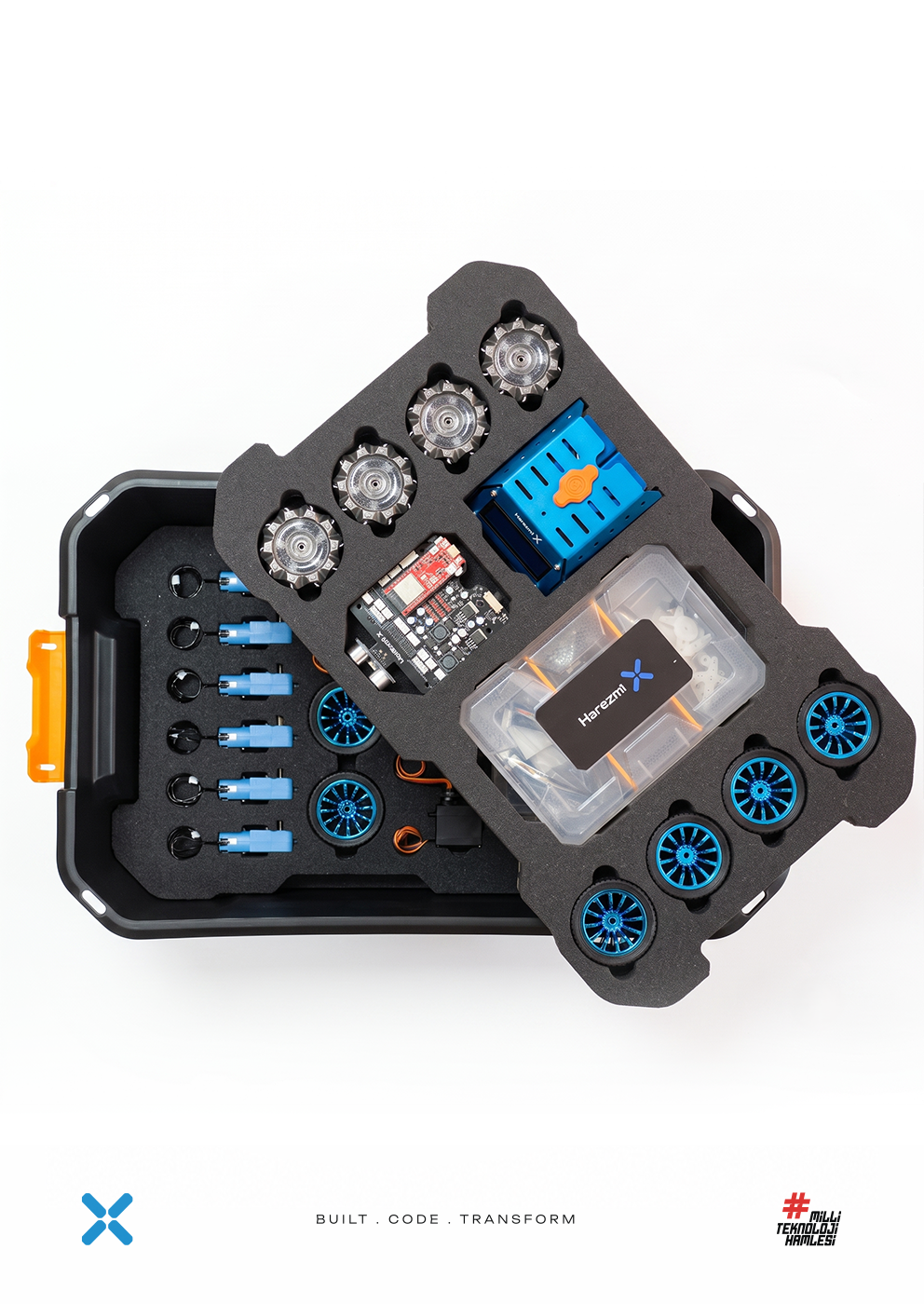

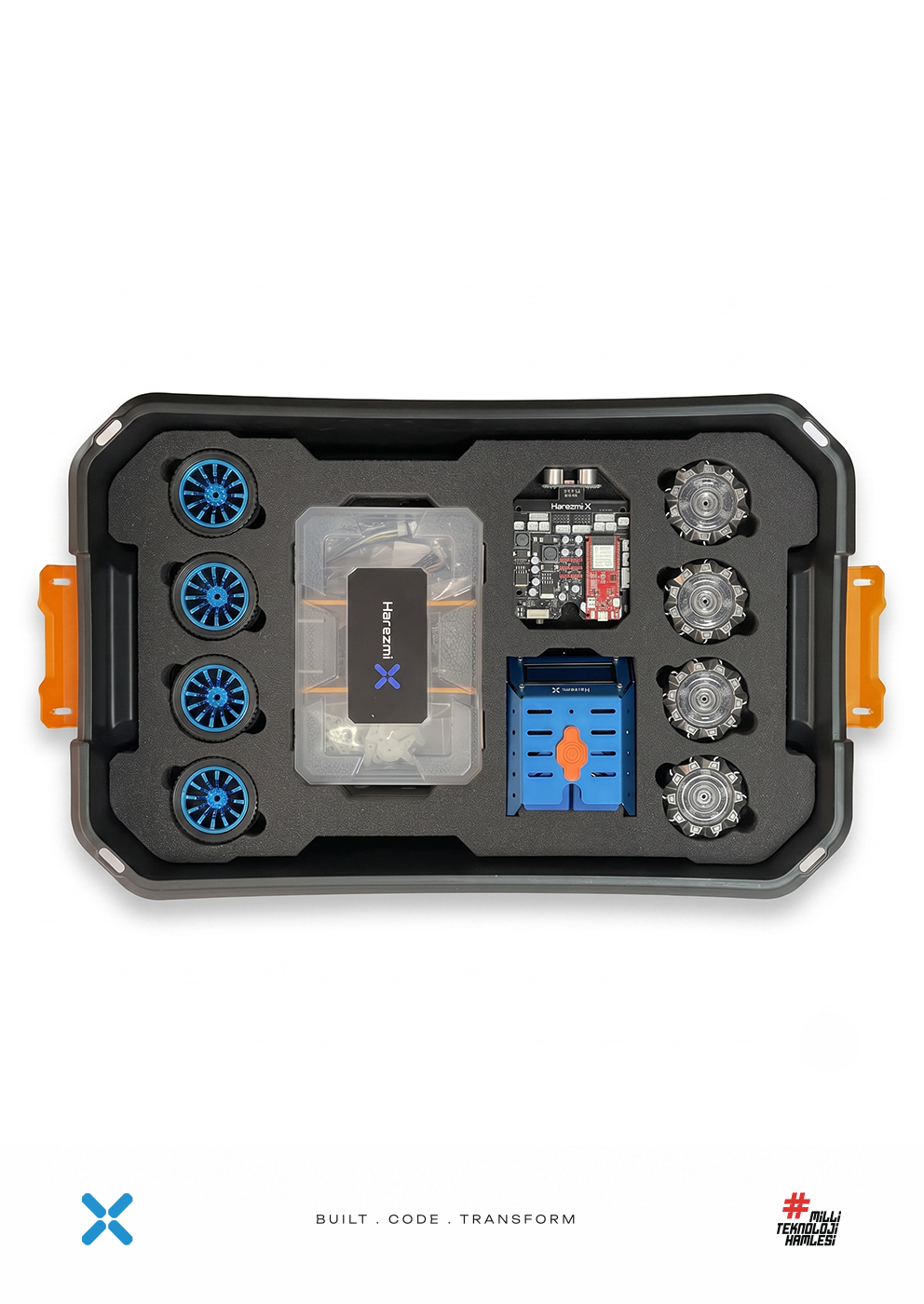

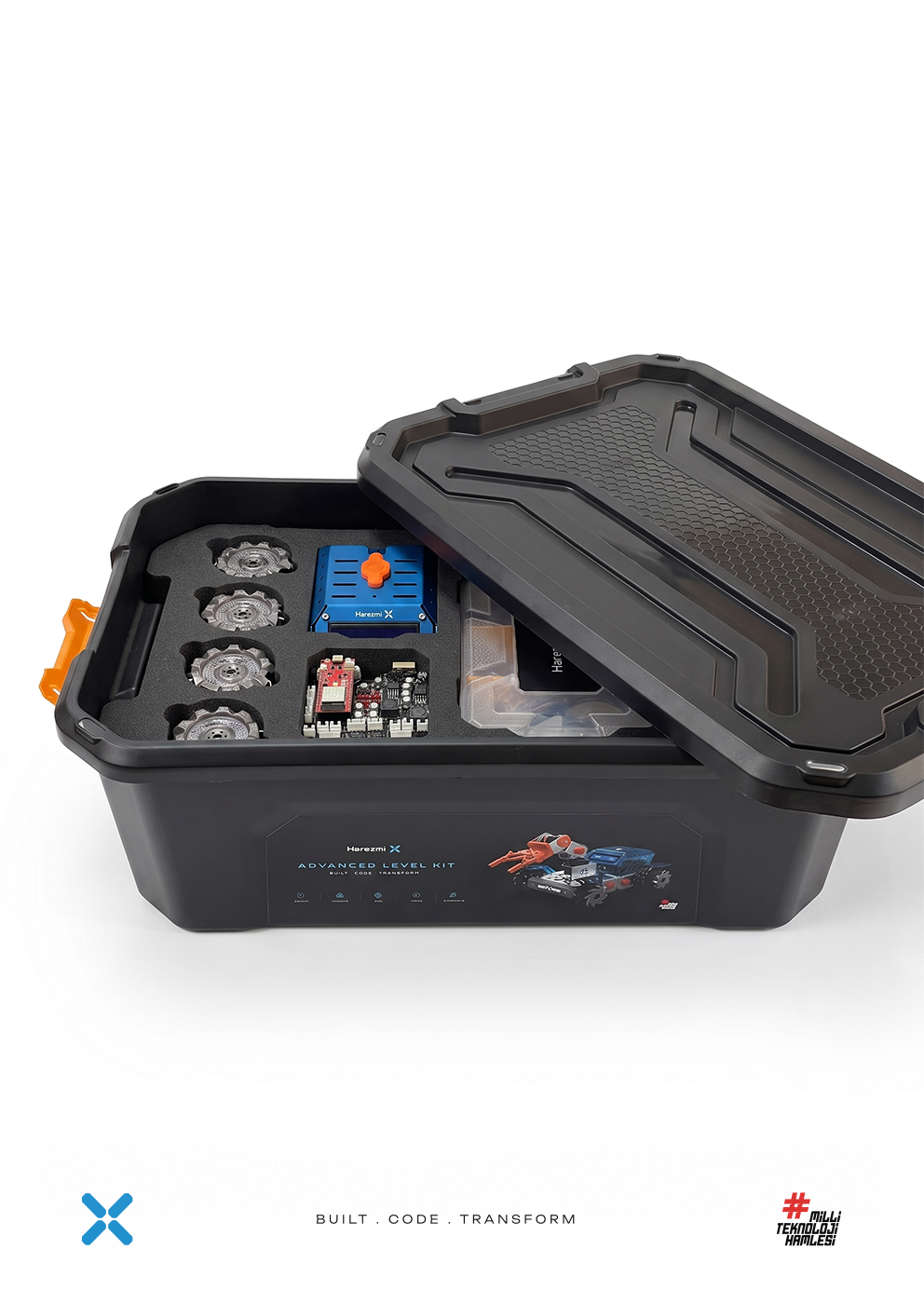

Harezmi X® Robotics Education Kit Package Contents
| Features / Hardware | Harezmi X Basic | Harezmi X Explorer | Harezmi X Advanced |
| Target Audience | Elementary School | Middle School (+ Elementary School) | Middle School, High School (+ Elementary School) |
| Assembly Status | Assembled | Partially Disassembled | Fully Disassembled (650 Pieces) |
| Number of Robotic Forms | 2 Forms | 8 Forms (2 Basic + 6 New) | Min. 16 Configurations (8 Explorer + 8 New) |
| Number of Motors | 2 DC Motors | 2 DC Motors | 6 DC Motors |
| Mobility Components | 2 Wheels | 2 Wheels | 6 Wheels, 4 Mecanum Wheels |
| Encoder Motors | Optional (+$15) | Optional (+$15) | None (Add-on +$20) |
| Programmable Modules | Display, RGB LED, Buzzer, Gyro, Line Follower, Touch Sensor, Distance Sensor, Wi-Fi, Bluetooth, Motors | Display, RGB LED, Buzzer, Gyro, Line Follower, Touch Sensor, Distance Sensor, Wi-Fi, Bluetooth, Motors, Color Sensor, Collision Sensor, Gripper, Pen Mechanism | Display, RGB LED, Buzzer, Gyro, Line Follower, Touch Sensor, Distance Sensor, Wi-Fi, Bluetooth, Motors, Color Sensor, Collision Sensor, Gripper, Pen Mechanism, 4-Servo Robotic Arm, Mecanum Movement Programming |
| Servo Motor | None (Optional) | 2 Small (Included in Gripper/Drawing Module) | 2 Small, 2 Large |
| Color, Collision, and 2D Distance Sensors | None (Optional) | Included | Yes |
| Clamping and Drawing Mechanism | None (Optional) | Available | Available |
| Chassis Components | 1 Piece | 1 Piece | 4 Pieces |
| Additional Mechanical Hardware | None | None | Special Components for Robotic Arms and Other Forms |
| Selling Price | $220 | $360 | $640 |
